Additional Info
Shipping Weight
Approximate shipping weight: 0.5 lbs
Materials
Hood Materials
Fire-Dex 2-Layer Knit Fire Hoods are available in multiple combinations of NFPA 1971-compliant knit materials.
(CX) Double Layer
CarbonX®
(NE) Double Layer
100% Nomex®
(NL) Double Layer
(20/80) Nomex®/Lenzing Blend
(PL) 2-LAYER
Outer: (20/80) PBI®/Lenzing
Inner: (20/80) Nomex®/Lenzing
(PS) Double Layer
(20/80) PBI®/Lenzing Blend
Materials
Hood Materials
Fire-Dex 2-Layer Knit Fire Hoods are available in multiple combinations of NFPA 1971-compliant knit materials.
(CX) Double Layer
CarbonX®
(NE) Double Layer
100% Nomex®
(NL) Double Layer
(20/80) Nomex®/Lenzing Blend
(PF) Double Layer
(40/55/5) P84-Lenzing-Kevlar® Blend
(PL) 2-LAYER
Outer: (20/80) PBI®/Lenzing
Inner: (20/80) Nomex®/Lenzing
(PP) 2-LAYER
Outer: High Strength PBI® (40/60) PBI®-Kevlar® Blend
Inner: (40/55/5) P84-Lenzing-Kevlar® Blend
(PS) Double Layer
(20/80) PBI®/Lenzing Blend
Materials
Hood Materials
Fire-Dex 2-Layer Knit Fire Hoods are available in multiple combinations of NFPA 1971-compliant knit materials.
(NE) Double Layer
100% Nomex®
(NL) Double Layer
(20/80) Nomex®/Lenzing Blend
(PF) Double Layer
(40/55/5) P84-Lenzing-Kevlar® Blend
(PL) 2-LAYER
Outer: (20/80) PBI®/Lenzing
Inner: (20/80) Nomex®/Lenzing
(PS) Double Layer
(20/80) PBI®/Lenzing Blend
Features & Construction
Product Features
- Long, seamless bib with shoulder notch
- Double layer, knit FR material
- No raw edges; fully hemmed face opening and bottom
- Sewn with Nomex® thread
- Flatlock seam construction
Features & Construction
Product Features
- Seamless bib with closed shoulder notch
- Double layer, knit FR material
- No raw edges; fully hemmed face opening and bottom
- Sewn with Nomex® thread
- Flatlock seam construction
Features & Construction
Product Features
- Tube style hood with seamless bib and shoulder notch
- Double layer, knit FR material
- No raw edges; fully hemmed face opening and bottom
- Sewn with Nomex® thread
- Flatlock seam construction
Additional Info
Shipping Weight
Approximate shipping weight: 0.5 lbs
Materials
Hood Materials
Fire-Dex 2-Layer Knit Fire Hoods are available in multiple combinations of NFPA 1971-compliant knit materials.
(CX) Double Layer
CarbonX®
(NE) Double Layer
100% Nomex®
(NL) Double Layer
(20/80) Nomex®/Lenzing Blend
(PF) Double Layer
(40/55/5) P84-Lenzing-Kevlar® Blend
(PL) 2-LAYER
Outer: (20/80) PBI®/Lenzing
Inner: (20/80) Nomex®/Lenzing
(PS) Double Layer
(20/80) PBI®/Lenzing Blend
H81 Fire Hood
H81 Fire Hood

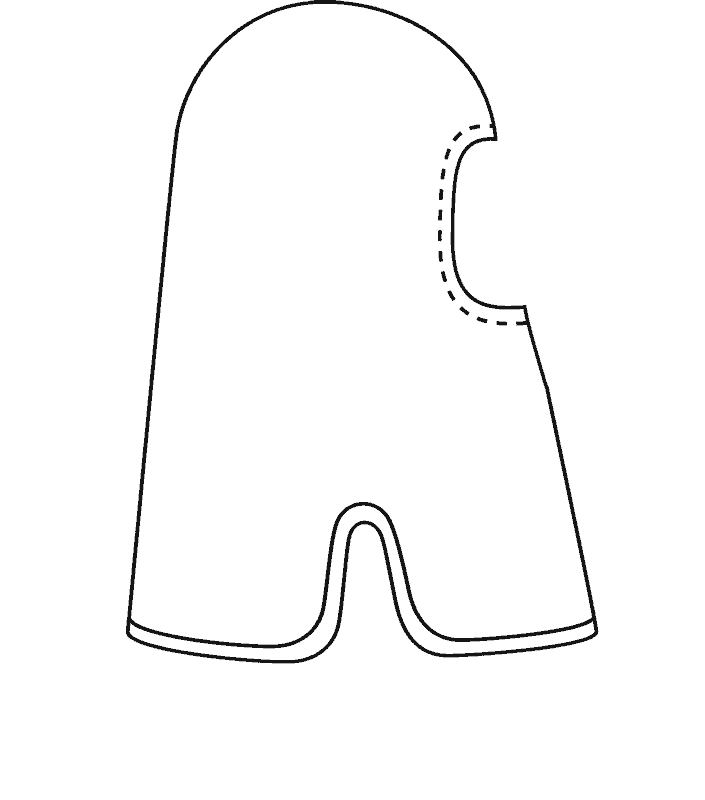

The H81 model is a 2-layer, long, seamless bib with notched shoulders.
H81-EL model is also available for added length.
Certified to NFPA 1971.
H71 Fire Hood
H71 Fire Hood
The H71 model is a 2-layer seamless bib with shoulder gusset.
Certified to NFPA 1971.
H61 Fire Hood
H61 Fire Hood
The H61 model is a 2-layer tube hood with shoulder notch and bound notch bottom.
XL model available for longer hood length.
Certified to NFPA 1971.
Features & Construction
Product Features
- Double layer, knit FR material
- No raw edges; fully hemmed face opening and bottom
- Sewn with Nomex® thread
- Flatlock seam construction
H37 Fire Hood
H37 Fire Hood

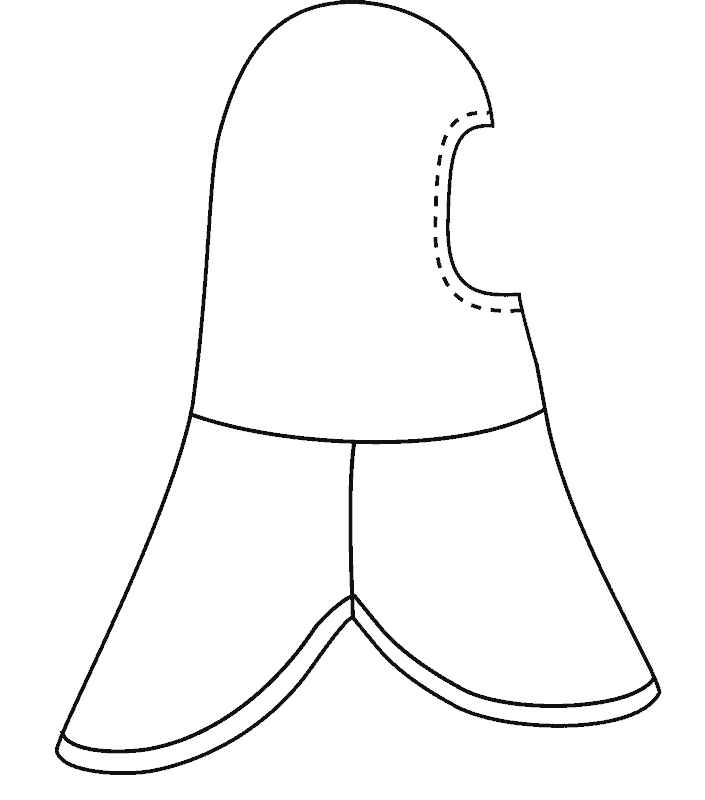

The H37 model is a 2-layer hood, designed with long bibs and shoulder contour.
Available with extra large bib (PX model).
Certified to NFPA 1971.
Sizes
Sizes
Medium (Regular) Width: whole sizes 4-16 & half sizes 8.5-13.5
Wide Width: whole sizes 8-16 & half sizes 8.5-13.5
Extra Wide Width: whole sizes 8-14 & half sizes 8.5-11.5
Materials
Materials

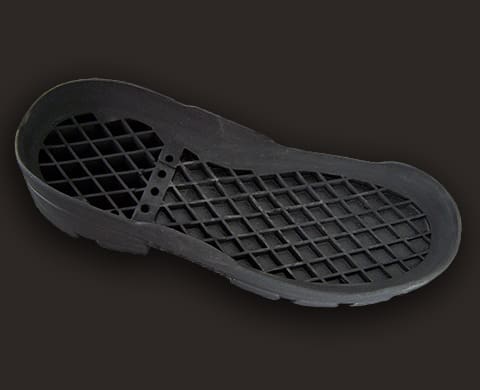

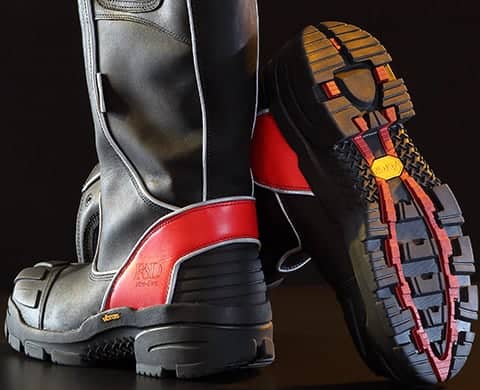

- Vibram® FIRE&ICE™ Compound - The sole, toe guard, and heel kick are all made using Vibram® FIRE&ICE™ compound. This compound provides superior slip resistance and flexibility in extreme cold or heat; offering the same performance whether walking on 480°F or -4°F.

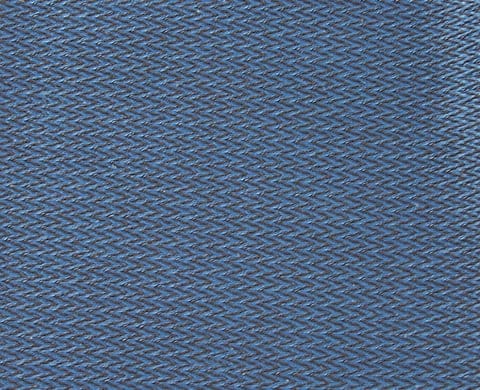

- CROSSTECH® Footwear Fabric provides a waterproof, breathable and antiviral membrane

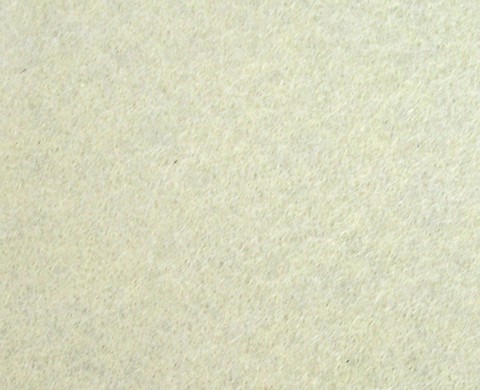

- NOMEX®/KEVLAR® Lining - 200g thermal and cut-resistant liner by DuPont™ provides the most innovative protection.

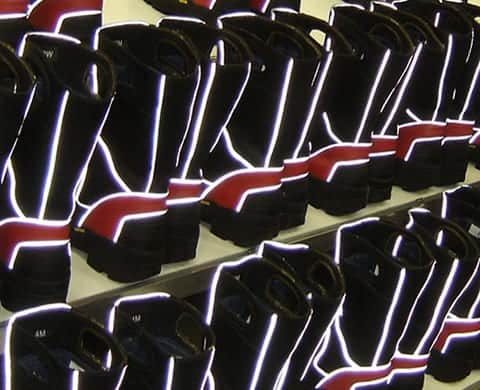

- 3M™ Scotchlite™ Reflective Material - 8935 Silver, industrial wash, flame resistant fabric, composed of retroreflective lenses for superior visibility (ANSI Compliant)
- Composite Toe Cap - Composite protective toe cap does not transfer heat or cold like steel. Complies with NFPA and CSA specifications.
- Ladder Shank - Provides stability and support when climbing and standing on ladders.

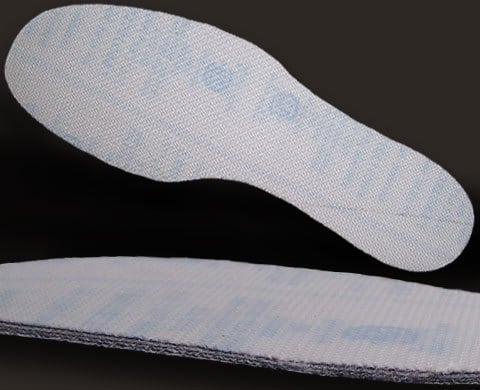

- Lenzi® Puncture Resistant Fabric - Provides full puncture resistance across the entire sole with a unique, ultra light, flexible material.

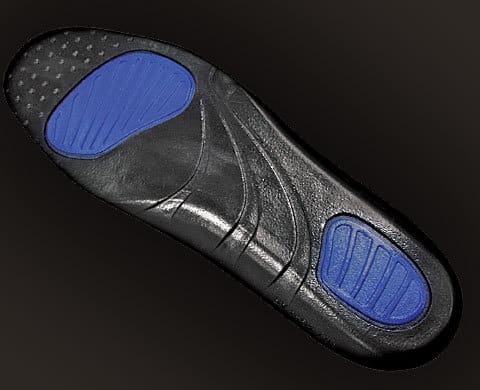

- Elastomer Performance Gel - Placed at the ball of the foot and the heel, absorbs and disperses impact energy.

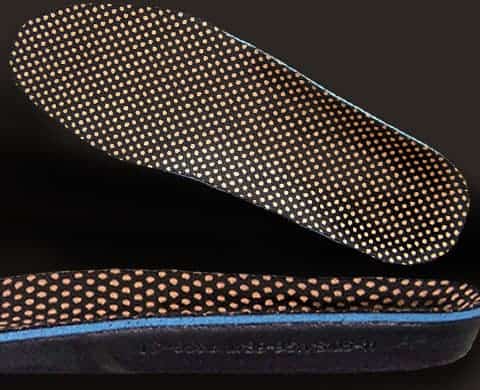

- EVA Memory Foam - Cradles the foot for a custom, perfect fit.
- Energy Return Polyurethane - Cushions and cradles the foot, reducing foot, leg, and back fatigue.
Materials
Material Selection Guide
Fire-Dex garments allow you to get the most out of your fire gear by offering a wide variety of outershells, thermal liners and moisture barriers.
To discover which composite offers the TPP/THL you need to stay safe, visit FireWriter2 and begin building your own custom fire fighter gear.
***CUSTOMER TOP PICKS***
ARMOR™ AP
- Gold
- Black
- Khaki
Outer Shell
AGILITY™
- Light Gold
- Dark Gold
- Black/Gold
ARMOR™ AP
- Gold
- Black
- Khaki
GEMINI™ XT
- Gold
- Black
KOMBAT™ FLEX
- Gold
- Black
NOMEX® IIIA
- Yellow
- Tan
- Black
- White
- Red
- Navy
PBI MAX® 6oz
- Gold
- Black
PBI MAX® 7oz
- Gold
- Black
PIONEER™
- Gold
- Khaki
- Yellow
- Black
Thermal Liners
-
DEFENDER™ M ELITE NP
Face Cloth : LENZING FR®/Aramid/Nylon blend spun yarn, plain weave. Available in brass.
Batting : 1 layer aramid needle punch
Total Weight : 7.0 oz/yd2
-
DEFENDER™ M SL2i
Face Cloth : LENZING FR®/Para-aramid/Nylon blend spun yarn, plain weave. Available in camo.
Batting : 2 layers of NOMEX® non-woven spunlace
Total Weight : 7.8 oz/yd2
-
GLIDE ICE™ 2-LAYER
Face Cloth : 60% NOMEX® filament yarn with 40% NOMEX®/LENZING FR® blend spun yarn, twill weave
Batting : 2 layers of NOMEX® E89™ spunlace (1 layer each of 2.3 and 1.5 oz/yd2)
Total Weight : 7.4 oz/yd2
-
Milliken® ResQ™ 8001
Face Cloth : 100% spun Nomex®
Batting : 2 layers of spunlace E-89
Total Weight : 7.1 oz/yd2 -
OMNIQuilt®
Face Cloth : Woven Nomex® fabric
Batting : Hydro-entangled nonwoven fabric composed of Basofil®, meta-aramid, and para-aramid fibers
Total Weight : 6.2 oz/yd2 -
Q-8™
Face Cloth : Meta-aramid, FR modacrylic (spun)
Batting : Aramid, FR rayon, needle-punch, non-woven
Total Weight : 8.0 oz/yd2
-
QUANTUM 3D™ SL2i
Face Cloth : KEVLAR® filament yarn with LENZING FR®/KEVLAR®/Nylon spun yarn, check weave
Batting : NOMEX®/KEVLAR® blend non-woven spunlace (1 layer 2.3 oz/ yd2 with waffle design and 1 layer 1.5 oz/yd2)
Total Weight : 7.7 oz/yd2
-
QUANTUM 4I™ SL2i
Face Cloth : KEVLAR® filament yarn with LENZING FR®/KEVLAR®/Nylon spun fibers, check weave
Batting : Two layers of aperture PBI®G2™ spun lace
Total Weight : 7.0 oz/yd2
-
TITANIUM™
Face Cloth : Filament Nomex® and COOLDERM™ technology
Batting : 2-layer, spun lace
Total Weight : 7.7 oz/yd2
Moisture Barriers
-
STEDAIR® 3000
Substrate : NOMEX® non-woven spun lace
Film : Bi-component ePTFE membrane
Total Weight : 5.2 oz/yd2
Supplier Warranty : 3 years
-
STEDAIR® 4000
Substrate : NOMEX® non-woven pajama check
Film : Bi-component ePTFE membrane
Total Weight : 5.5 oz/yd2
Supplier Warranty : 4 years
-
STEDAIR® GOLD
Substrate : PBI®/NOMEX® blend non-woven spun lace
Film : Bi-component ePTFE membrane
Total Weight : 5.2 oz/yd2
Supplier Warranty : 4 years
-
CROSSTECH® BLACK
Substrate : NOMEX® fabric woven from spun fibers (pajama check)
Membrane: Enhanced bicomponent GORE™ ePTFE film
Total Weight : 4.7 oz/yd2
Supplier Warranty : 5 years
-
CROSSTECH® 3-Layer
Substrate : NOMEX® fabric woven from spun fibers (pajama check on front, proprietary weave on back)
Membrane: Enhanced bicomponent GORE™ ePTFE film
Total Weight : 7.0 oz/yd2
Supplier Warranty : 7 years
Construction
FIRE-DEX CONSTRUCTION
Double Lock Stitching
Fire-Dex uses lock stitching on all major seams, cuffs, and reinforcements, with 4 rows of lock stitch on all reflective trim and hook & loop closure material.
Deep Water Wells
Deep sleeve water wells provide a natural glove/sleeve interface, keeping water out of the inside of sleeves.
Superior Pockets
All Bellows Pockets are reinforced with Kevlar® for the best cut resistance. All Radio Pockets are fully lined with moisture barrier, including the pocket flap. All pocket flaps are extra long to ensure complete closure, no matter the bulk inside.
Liner Tabs
Liner retention snap tabs come standard on all Fire-Dex coats to prevent "liner creep-up". Our standard liner tabs at the pant cuff are placed at the front and back to avoid wear between legs.
Detailed & Documented Moisture Barrier Seam Testing
We are partnered with both Moisture Barrier suppliers, W.L. Gore and Stedfast, and established a controlled environment for the most effective seam sealing. Every 10th garment is tested!
Hook & D Rivets
Always reinforced with a leather backing.
Moisture & Thermal Sewn Together
Prevents debris from entering between the layers and causing damaging abrasion to the moisture barrier. Inspection Ports can be added to any Fire-Dex Custom Turnout Coat or Pant.
Continuous Inspections Throughout Construction
Seventeen (17) inspection points throughout the process. Each team has an inspection station with electronic access to all specifications and work instructions.
Extra Thermal in High Compression Areas
Additional thermal protection is sewn to all high compression areas, such as knees, elbows, and shoulders, standard.
